【Mahsulot bilan tanishish】
|
Hujayra |
Monokristalli, 182mmx91mm |
|
Hujayralar soni |
108（6×18） |
|
Nominal maksimal quvvat (Pmax) |
420W |
|
Maksimal samaradorlik |
21,5 foiz |
|
Birlashma qutisi |
IP68 |
|
Maksimal tizim kuchlanishi |
1000V/1500V doimiy oqim |
|
Ishlash harorati |
-40 daraja - ortiqcha 85 daraja |
【Mahsulot tavsifi】
420 Vt yuqori samarali quyosh paneli M10 MBB PERC quyosh batareyalaridan ishlab chiqarilgan bo'lib, yuqori samarali modullarning ushbu seriyasi turar-joy uyingizda quyosh PV o'rnatish uchun eng tejamkor echimni ta'minlaydi. To'liq qora, qora ramka yoki kumush ramka va qora orqa panelli quyosh panellari mavjud.
【Asosiy xususiyatlar】
【PV modulining o'lchami】
【STC da elektr ma'lumotlari】
|
Nominal maksimal quvvat (Pmax) [Vt] |
400 |
405 |
410 |
415 |
420 |
|
Ochiq tutashuv kuchlanishi (Voc) [V] |
37.07 |
37.23 |
37.32 |
37.45 |
37.58 |
|
Maksimal quvvat kuchlanishi (Vmp) [V] |
31.01 |
31.21 |
31.45 |
31.61 |
31.80 |
|
Qisqa tutashuv oqimi (Isc) [A] |
13.79 |
13.87 |
13.95 |
14.02 |
14.10 |
|
Maksimal quvvat oqimi (Imp) [A] |
12.90 |
12.98 |
13.04 |
13.13 |
13.21 |
|
Modul samaradorligi [foiz] |
20,48 foiz |
20,74 foiz |
21.00 foiz |
21,25 foiz |
21, 51 foiz |
|
Quvvat tolerantligi |
0~ ortiqcha 5 Vt |
||||
|
Harorat koeffitsienti Isc( _Isc) |
0.044 foiz/daraja |
||||
|
Voc harorat koeffitsienti ( _Voc) |
-0.275 foiz/daraja |
||||
|
Pmax harorat koeffitsienti ( _Pmp) |
-0.350 foiz/daraja |
||||
|
STC |
Nurlanish 1000W/m², hujayra harorati 25 daraja, AM1,5G |
||||
【NOCTdagi elektr ma'lumotlari va ish sharoitlari】
|
NOCT DA ELEKTR PARAMETRLARI |
|||||
|
TYPE |
400 |
405 |
410 |
415 |
420 |
|
Nominal maksimal quvvat(Pmax) [Vt] |
302 |
306 |
310 |
314 |
318 |
|
Ochiq tutashuv kuchlanishi (Voc) [V] |
34.88 |
35.12 |
35.23 |
35.37 |
35.50 |
|
Maksimal quvvat kuchlanishi (Vmp) [V] |
29.26 |
29.47 |
29.72 |
29.89 |
30.09 |
|
Qisqa tutashuv oqimi (Isc) [A] |
11.03 |
11.10 |
11.16 |
11.22 |
11.29 |
|
Maksimal quvvat oqimi (Imp) [A] |
10.32 |
10.38 |
10.43 |
10.50 |
10.57 |
|
NOCT |
Nurlanish 800W/m², atrof-muhit harorati 20 daraja, shamol tezligi 1m/s, AM1.5G |
||||
|
ISHLATISH SHARTLARI |
|
|
Maksimal tizim kuchlanishi |
1000V/1500V DC(IEC) |
|
Ishlash harorati |
-40 daraja ~ plyus 85 daraja |
|
Maksimal seriyali sug'urta |
25A |
|
Maksimal statik yuk, old |
5400 Pa |
|
Maksimal statik yuk, orqaga |
2400Pa |
|
NOCT |
45±2 daraja |
|
Ilova sinfi |
A sinf |
【Tok kuchlanish egri chiziqlari】
【Mexanik ma'lumotlar】
|
XUSUSIYATLAR |
|
|
Hujayra |
Mono |
|
vazn |
21,5kg±3 foiz |
|
O'lchamlari |
1722 mm × 1134 mm × 30 mm |
|
Kabel kesimining o'lchami |
4 mm2(IEC), 12AWG (UL) |
|
Hujayralar soni |
108(6x18) |
|
Birlashma qutisi |
IP68, 3 diod |
|
Ulagich |
QC 4.10 (1000V) / QC 4.10-35(1500V) |
|
Kabel uzunligi (shu jumladan ulagich) |
Portret: 300mm( plus )/400mm(-) Landshaft: 1200mm( plus )/1200(-) |
|
Paket konfiguratsiyasi |
36 dona / palet, 216 dona / 20 fut konteyner 936 dona / 40 fut konteyner |
【Sertifikatlash】

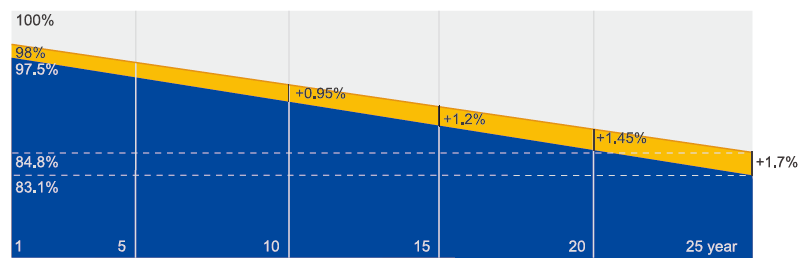

【Ishlash kafolati】
